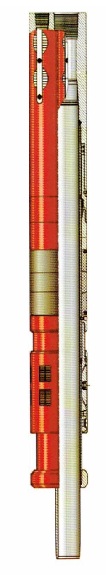

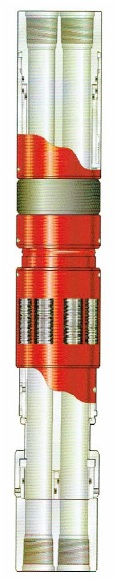

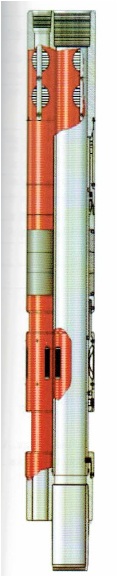

ESP Electric Submersible Retrievable Packer
Description/ Application :
The Model ESP Electric Submersible Retrievable Packer is designed to facilitate the use of an Electric Submersible Pump (ESP).
The packer can be provided with threaded connections to accept a pack-off power cable feed-through system with cable pigtails, or a drop-through penetrator. Additional optional ports allow venting of annular pressure fluid injection through the packer and/or instrument wire port bypass.
Features/ Benefits :
– Fewer Parts : The Esp Packer is specifically designed to be run with electric submersible pumps, and is not a modified version of a dual-string production packer. Its simple design and reduced number of parts provide easy retrieval and redress.
– Easy set and released : Hydraulic set, straight pull/shear release.
– Short, compact design : its length (less than 3 feet) makes it easier to run and handle. Permits reliable installation where longer packers have.
– Separate gas venting string : No Venting through primary or secondary strings.
– Designed to fit special needs : Optional ports through packer.
– No relative movement between tubing and cable : eliminates cable strain.
– Mechanically locked in set position : A body lock ring holds the packer in the set position.
– Double-grip, caged slips : Eliminates the need for hydraulic hold-downs. Top and bottom cones drive slips into the casing wall and hold loads from either direction.
– Threaded connections can be adapted to most other feed-through systems.
