Recommended Applications:
For slurry circulating pump in gas desulfurizing system of power plant, also using for chemical industry and pulp and paper industry
Operating Range:
- Temperature: – 40◦ C to +150◦C
- Pressure: up to 2.0 MPa
- Speed: 500 to 3000 rpm
Design Features：

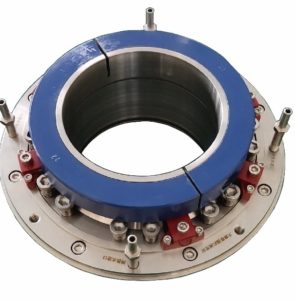

Static spring design, cartridge, double mechanical seal, balanced, O-ring
- Static Spring Design
The stability and reliability of the mechanical seal operation are further improved, and effectively prevents the failure of spring from being blocked by medium, thereby improving the service life.
- Cartridge design
Allows for fast and easy installation and ensures the accuracy of the installation
- Double Mechanical Seal Design
It greatly enhances the run-life and operating reliability of mechanical seals.
Balanced Construction
Allows to use at higher pressures
- O-Ring Design
Fit for a variety of fluids by using of a wide variety of material
