Electrical Submersible Pumping (ESP) Monitoring System

  • Provides reliable, fast and accurate well data.
  • Analysis ESP well, troubleshooting and production optimization.
  • Extend ESP run life, improve performance and reduce operating cost.

Electrical Submersible Pumping (ESP) monitoring System is engineered for 150 ° C well temperature and 5800 PSI operating pressure.
The transducers are rated for 250 ° C. The high pressure connectors are rated for 232 ° C.
PTFE reinforced KFM O-ring with backups is design for high pressure. All gauge passes HT/HP test at manufacturer.

Application :

  • ESP well monitoring
  • ESPCP well monitoring
  • ESP/ESPCP well troubleshooting
  • ESP & ESPCP well reservoir monitoring

Features

  • Compatible with major ESP brands equipment.
  • 7” touch screen as surface readout panel.
  • Building-in memory stores data up to 3 months.
  • USB port for easy data download.
  • Analog input and output.
  • RS232/485 ready.
  • Modbus ready.
  • IP65 enclosure rating.
DownHole Monitoring System

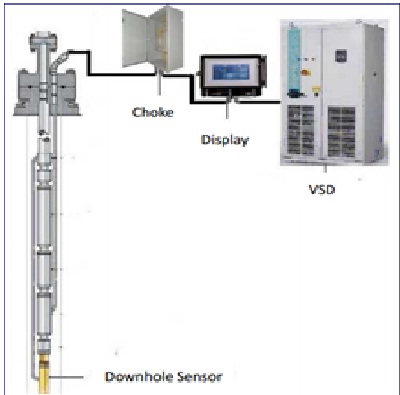

ESP Monitoring System
